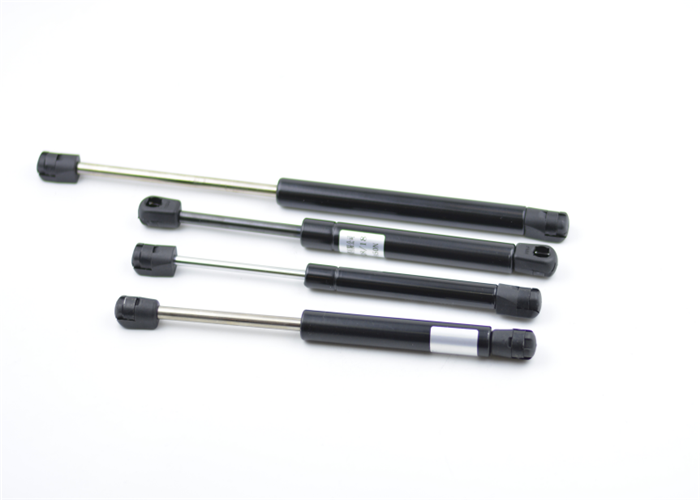

Sliver Chair Gas Lift Cylinder , Pneumatic Chair Cylinder 150 N
Hydraulic Cabinet Door
Air Cylinders Production Features:
1. The metal mounting chassis is used at both ends, which is not
easy to rust and has a strong bearing capacity.
2. ABS gas head has high wear resistance and can adapt to harsh
environments
3. Made of pure copper gasket, good sealing, Gas Strut Lift with
solid design, strong support
4. Round metal mounting plate, large contact area with cabinet,
three-point positioning, very firm
5. 1.5cm adjustment hole spacing to ensure easy installation and
adjustment, 10 tooth anti-skid
Air Cylinders Products Details:
Length: 11.2 inches / 285mm
Disk diameter: 1.14 inches / 29mm
Disc pitch: 0.7 inches / 18mm
Closed length: 7.8 inches / 198mm
Specification: 100N
Bearing weight:10kg
Weight: 107g
Could be used for many purposes.You can use Gas Strut for the
Kitchen Cabinets,RV Overhead Cabinet Doors,Small tatami, wardrobe,
bookcase, etc,It is so nice for you to be able to use both hands
inside the cabinets without balancing the cabinet door on you head
Gas springs are similar to air cylinders, in that they both use a
piston that compresses or extends based on the pressure in the
chamber.
Air Cylinders Company Introduction:
Changzhou Nantai gas spring Co., Ltd. was founded in 2004, which
manufactures gas spring for swivel chairs, lockable gas spring and
compression gas spring for furniture. Quality Management System
ISO9001:2016, Germany TUV LGA (DIN4550) and BIFMA5.1 SGS are our
certifications.We have developed 6 scientific and technological
projects independently, successfully realized 20 scientific and
technological achievements, and 15 utility model patents have been
authorized, 5 utility model patents have been accepted. Nantai
keeps pace with the times and aims to be better and better with his
own style. "Market-oriented, Enterprise-centered" is the concept of
Nantai service.
| Items No. | Extended Length/mm | Stroke/mm | Cylinder Dia./mm | Piston rod Dia./mm | Min force/N |
| NT001 | 113 | 30 | 12 | 4 | 35 |
| NT002 | 160 | 50 | 12 | 4 | 50 |
| NT003 | 219 | 80 | 12 | 4 | 40 |
| NT004 | 160 | 40 | 15 | 6 | 50 |
| NT005 | 200 | 60 | 15 | 6 | 60 |
| NT006 | 220 | 65 | 15 | 6 | 75 |
| NT007 | 245 | 70 | 15 | 6 | 190 |
| NT008 | 250 | 90 | 15 | 6 | 50 |
| NT009 | 250 | 90 | 15 | 6 | 70 |
| NT010 | 250 | 90 | 15 | 6 | 80 |
| NT011 | 250 | 85 | 15 | 6 | 90 |
| NT012 | 280 | 100 | 15 | 6 | 40 |
| NT013 | 330 | 120 | 15 | 6 | 90 |
| NT014 | 380 | 140 | 15 | 6 | 100 |
| NT015 | 247 | 80 | 18 | 8 | 250 |
| NT016 | 280 | 100 | 18 | 8 | 250 |
| NT017 | 300 | 100 | 18 | 8 | 200 |
| NT018 | 350 | 130 | 18 | 8 | 150 |
| NT019 | 380 | 140 | 18 | 8 | 70 |
| NT020 | 400 | 150 | 18 | 8 | 150 |
| NT021 | 435 | 170 | 18 | 8 | 130 |
| NT022 | 450 | 180 | 18 | 8 | 340 |
| NT023 | 510 | 210 | 18 | 8 | 200 |
| NT024 | 550 | 220 | 18 | 8 | 300 |
| NT025 | 700 | 290 | 18 | 8 | 350 |
| NT026 | 200 | 40 | 22 | 10 | 500 |
| NT027 | 310 | 110 | 22 | 10 | 400 |
| NT028 | 350 | 130 | 22 | 10 | 200 |
| NT029 | 380 | 140 | 22 | 10 | 180 |
| NT030 | 450 | 170 | 22 | 10 | 700 |
| NT031 | 500 | 200 | 22 | 10 | 300 |
| NT032 | 600 | 240 | 22 | 10 | 400 |
| NT033 | 730 | 300 | 22 | 10 | 430 |
| NT034 | 280 | 100 | 25 | 12 | 900 |
| NT035 | 280 | 100 | 25 | 12 | 1360 |
| NT036 | 640 | 260 | 28 | 14 | 1100 |
Air Cylinders FAQS:
1. What is your factory product range?
Hinges, Gas spring, Tatami system, Ball bearing slide,Handles
2. Do you provide samples? Is it free or extra?
Yes, we provide free samples.
3. Do you offer ODM services?
Yes, ODM is welcome.
4. How long is the shelf life of your products?
More than 3 years.
5. Where is your factory, can we visit it?
Changzhou, Jiangsu, China. Very near from Shanghai
