Hot sales adjustable 180mm 200mm steel material nitrogen filled gas
springs cylinder for bar chair
Changzhou Nantai gas spring Co., Ltd. was founded in 2004, which
manufactures gas spring for swivel chairs, lockable gas spring and
compression gas spring for furniture. Nantai keeps developing, and
has a high-tech, high-quality management team.
NANTAI's seal and valving system ensure the reliability,
consistency and continuous product performance over gas lift design
life. Operated up and down very smooth without noise. Hard chrome
plated piston rod are provided with extra reliability and corrosion
resistance.
And No need of additional fixture for a joint as the single outer
pipe with cylinder in solid steel material.
Nitrogen gas spring description
Name | Hot sales adjustable 180mm 200mm steel material nitrogen filled gas
springs cylinder for bar chair |
Usage | Use for office chair or furniture chair |
Advantages | 1.One time molding spring |
2.100000 times fatigue test |
3.gas springs are stored over 7 days before assembling to ensure
good quality |
Colour | Outer tube color: Powder coating & Chrome |
Button color: White, Red,Black, Orange, Green etc. |
Type | Stroke is from 40-330mm for different of chairs. |
Boss chairs:40mm,60mm, 80mm |
Office chair:100mm, 120mm, 140mm, 160mm |
Bar chair:180mm, 200mm, 260mm, 330mm |
Class | Class is different from the thickness of medium tube & outer tube. |
Class 1 ---1.0mm Outer Tube,1.2mm Inner Tube |
Class 2 ---1.0mm Outer Tube,1.5mm Inner Tube |
Class 3 ---1.2mm Outer Tube,2.0mm Inner Tube |
Class 4 ---1.5mm Outer Tube,2.5mm Inner Tube |
Sample | 1.We can prepare the sample within 3-5days, sample free of charge |
2.Buyer need to pay the freight cost need to send to the overseas |
Trade Term | FOB SHANGHAI or EXW Changzhou |
Hydraulic gas spring specification
MODEL | L | C | V | X | Y | (F2)N±20N |
NT-B/C-40mm | 230 | 40 | 145 | 58 | 10 | 460N |
NT-B/C-60mm | 275 | 60 | 160 | 58 | 10 | 460N |
NT-B/C-80mm | 305 | 80 | 175 | 58 | 10 | 460N |
NT-B/C-100mm | 347 | 100 | 195 | 58 | 10 | 440N |
NT-B/C-120mm | 392 | 120 | 215 | 58 | 10 | 420N |
NT-B/C-140mm | 414 | 140 | 225 | 58 | 10 | 420N |
NT-B/C-160mm | 450 | 160 | 250 | 58 | 10 | 420N |
NT-B/C-180mm | 525 | 180 | 275 | 58 | 10 | 420N |
NT-B/C-200mm | 545 | 200 | 295 | 58 | 10 | 420N |
NT-B/C-230mm | 680 | 230 | 370 | 58 | 10 | 420N |
NT-B/C-260mm | 705 | 260 | 385 | 58 | 10 | 420N |
Compression gas spring packaging & shipping
1) 20pcs per carton, if you need 10pcs per carton, there's no any
problem
2) 40 wooden package
3) pallet
4) shipping: FCL or LCL shipment all available
About the package, we can discuss.
Gas lift struts rich experience
We have more than 15 years experience in this industry.That
means,we can preview the problems for the orders and products.
Therefore, it will make sure to reduce the risk of bad situation to
happen.
Point to point service: There is one sale who will serve you from
inquiry to products shipped out.
During the process, you just need to discuss with her for all
problems and the way saves much time.
Free design: If you are not ready for the designs, the professional
designers will be able to help you with it freely.
Strict QC: For each order, strict inspection will be carried out by
the QC department before shipping. The bad quality will be avoid
within door.
Gas spring cylinder drawing

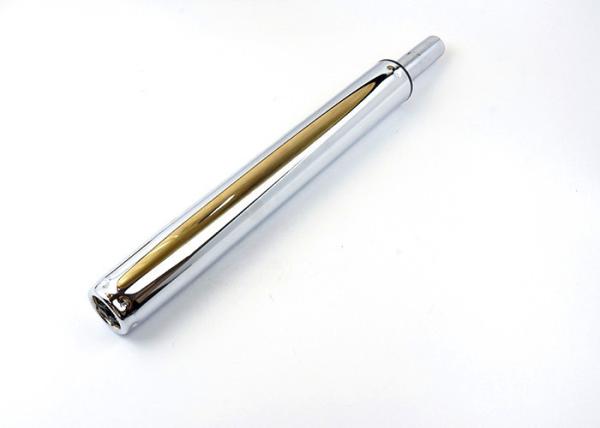

Chair gas spring pic
We are pleased to inform you that we are now launching new products
such as chair mechanism and caster. We will provide you with
one-stop service wholeheartedly, meet your more needs.
